•Nominal Voltage: 25.6V

•Capacity: 50Ah

•Energy Storage: 1.28kWh

•Chemistry: Lithium Iron Phosphate (LFP)

•Cycle Life: >3000 cycles at 80% DOD

•Charging Voltage: 29.2V ± 0.2V

•Discharge Cut-off Voltage:20V

-Standard charging current: 25A

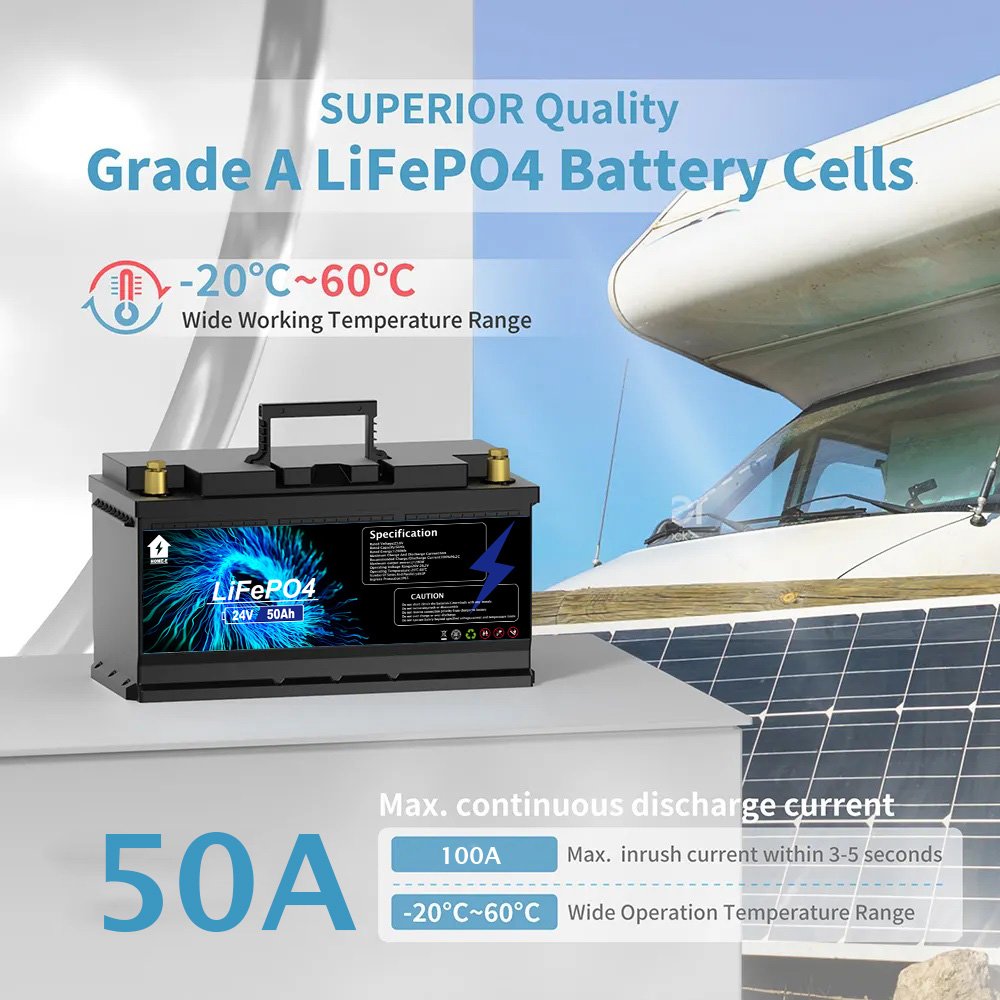

-Maximum discharge current: 50A (continuous), Peak current 100A (5 seconds)

Operating Temperature:

•Charge: 0°C to 45°C

•Discharge: -20°C to 60°C

•Storage Temperature: -20°C to 45°C

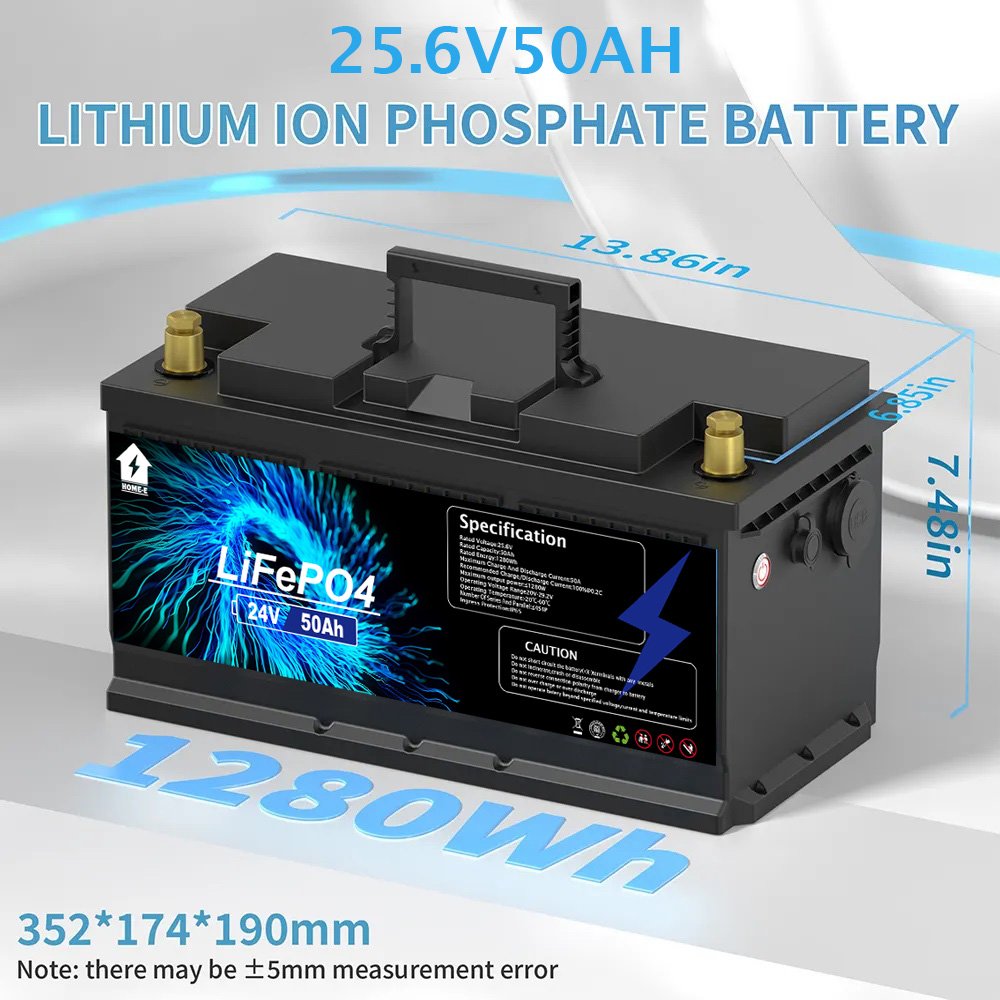

•Dimensions: 352mm (L) x 174mm (W) x 190mm (H)

•Weight: 15kg

Protection Features:

•Overcharge Protection: Yes

•Overdischarge Protection: Yes

•Short Circuit Protection: Yes

•Temperature Protection: Yes

•Cell Balancing: Yes

•Connectors: Anderson or customer specified.

•Warranty: 3 years limited warranty

1.Power tools:
-Portable power tools: provide efficient and stable power support for portable power tools such as electric drills, electric saws, electric screwdrivers, and so on.
-Gardening tools: Provide long-lasting power support for lawn mowers, pruning shears and other gardening tools.

2.Drones:
-Industrial drones: provide efficient and stable power source for industrial drones to extend flight time and operation range.
-Consumer drones: Provide lightweight and efficient power support for consumer drones to enhance the flight experience.

3.Portable power supply:
-Outdoor activities: Provide reliable backup power for camping, hiking, fishing and other outdoor activities, and support charging of various portable electronic devices.
-Emergency power supply: Provide stable power support in emergencies to ensure the normal operation of equipment.

4.Communication equipment:
-Backup power supply: Provide reliable backup power for communication base stations to ensure the stable operation of communication networks.
-Remote site: Provide power support in communication base stations in remote areas to reduce maintenance costs.

5.Medical Equipment:
-Portable medical equipment: provide portable medical equipment with lightweight and efficient power support to ensure the normal operation of the equipment.
-Mobile medical equipment: Provide stable backup power for mobile medical equipment to ensure the smooth operation of medical work.

6. Fishing and navigation:
-Small fishing boats: Provide efficient and stable power source for the electric propulsion system of small fishing boats to extend the range and reduce fuel consumption.
-Equipment on board: provide continuous power support for the navigation equipment, communication equipment, lighting system, etc. of small fishing boats to ensure the normal operation of fishing boats.
-Emergency power supply: Provide reliable backup power in case of emergency to ensure the safety of fishermen and normal operation of equipment.

7.Military and National Defense:
-Portable equipment: Provide lightweight and efficient mobile power for military equipment and communication systems to improve combat capability.
-Emergency power supply: Provide stable power support in emergencies to guarantee the smooth operation of missions.

•Installation:

Ensure the battery is installed in a well-ventilated area and away from direct sunlight. Follow the provided installation guide for proper connection and mounting.

•Maintenance:

The LFP battery requires minimal maintenance. Regularly check the connections for tightness and inspect the battery for any signs of damage or wear.

•Charging:

-Charging: Use a compatible 29.2V charger and set appropriate charging parameters to ensure long-term battery performance.

•Handling:

Handle the battery with care to avoid dropping or damaging it.

•Ventilation:

Ensure adequate ventilation during charging and discharging to prevent the accumulation of gases.

•Temperature:

Avoid exposing the battery to extreme temperatures.

•Electrical Connections:

Ensure all electrical connections are secure and properly insulated.

•Disposal:

Dispose of the battery according to local regulations and recycling guidelines.
