•Nominal Voltage: 25.6V

•Capacity: 100Ah

•Energy Storage: 2.56 kWh

•Chemistry: Lithium Iron Phosphate (LFP)

•Cycle Life: >3000 cycles at 80% DOD

•Charging Voltage: 29.2V ± 0.2V

•Discharge Cut-off Voltage:20V

-Standard charging current: 50A

-Maximum discharge current: 100A (continuous), Peak current 200A (5 seconds)

Operating Temperature:

•Charge: 0°C to 45°C

•Discharge: -20°C to 60°C

•Storage Temperature: -20°C to 45°C

•Dimensions: 522mm (L) x 240mm (W) x 218mm (H)

•Weight: 26kg

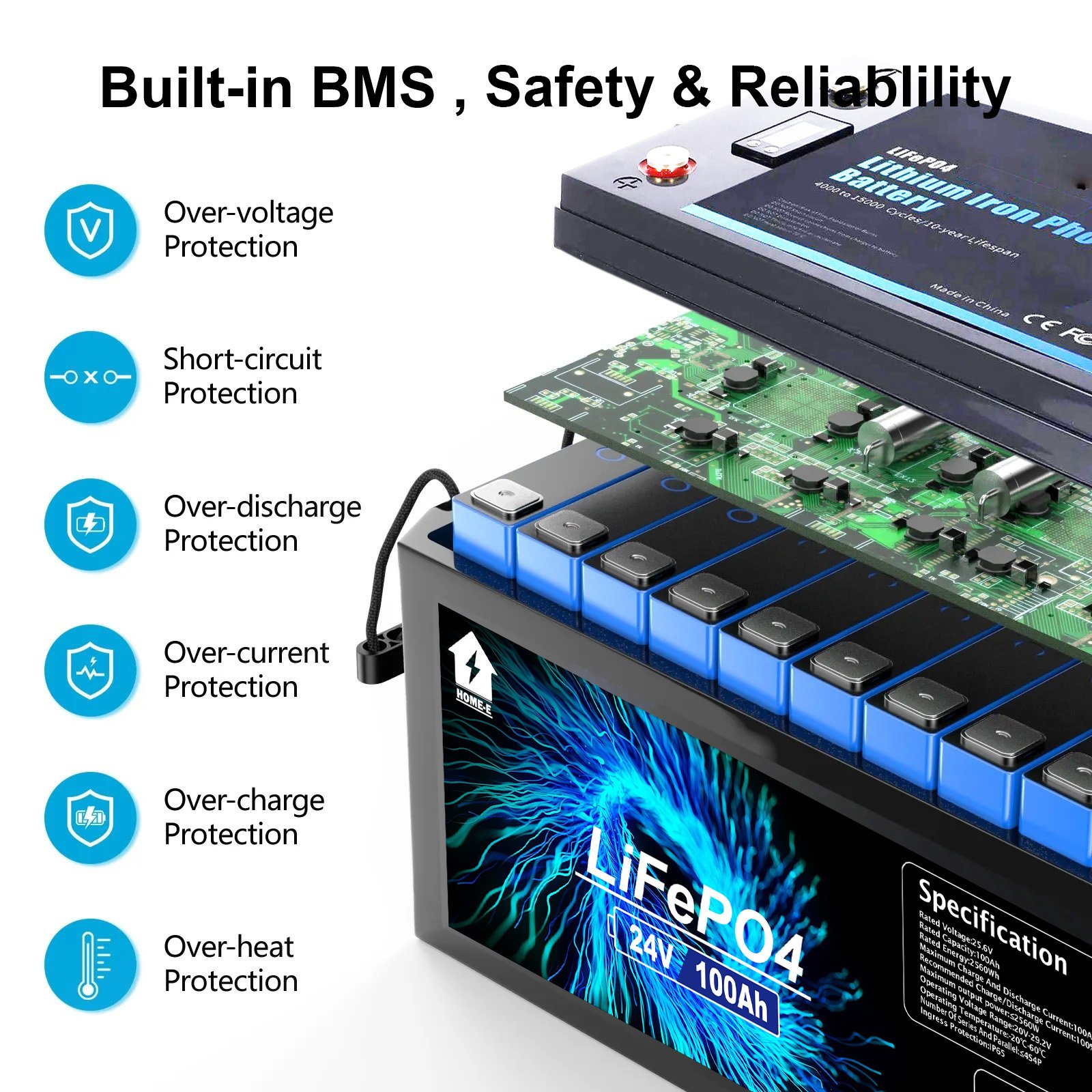

Protection Features:

•Overcharge Protection: Yes

•Overdischarge Protection: Yes

•Short Circuit Protection: Yes

•Temperature Protection: Yes

•Cell Balancing: Yes

•Connectors: Anderson or customer specified.

•Warranty: 3 years limited warranty

1.Electric Vehicle:
-Power system: Provide efficient and stable power source for electric vehicles to extend the range.
-Auxiliary system: Provide electric power support for auxiliary systems (such as air conditioning, lighting, entertainment system, etc.) of electric vehicles.

2. Energy storage system:

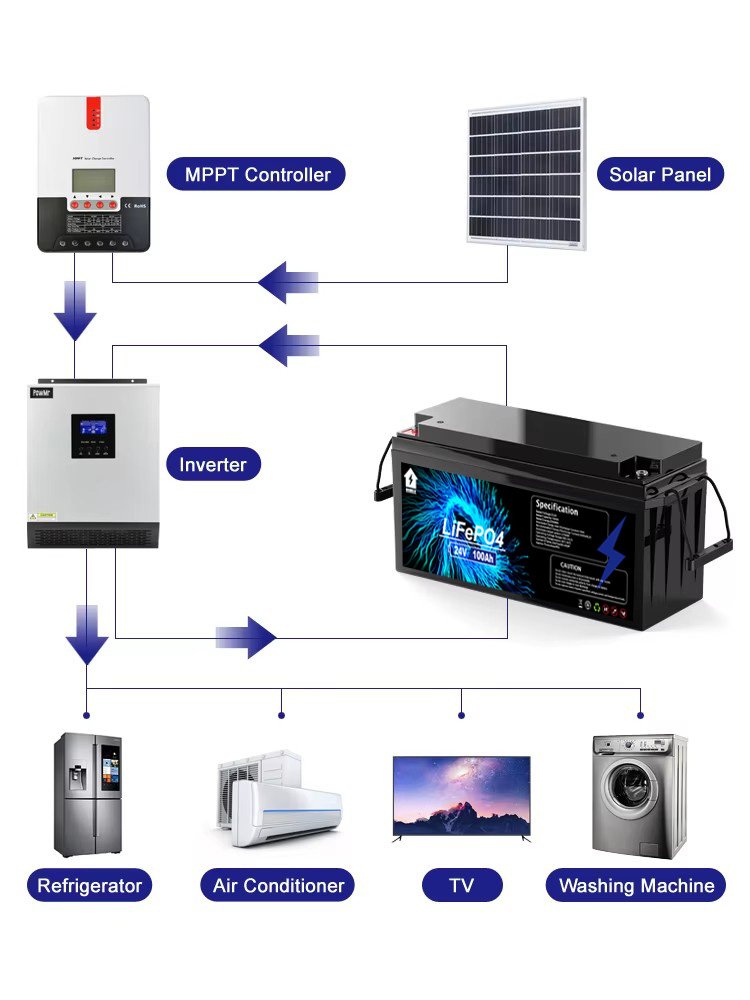

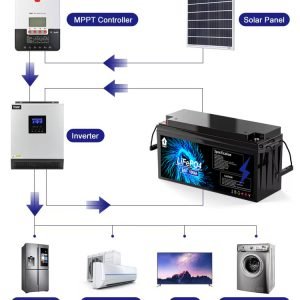

-Home energy storage: as the energy storage unit of home solar energy system, it provides stable power supply and reduces the dependence on the power grid.
-Equipment on boat: provide continuous power support for navigation equipment, communication equipment, lighting system, refrigeration equipment, etc. to ensure the normal operation of the fishing vessel.
-Emergency power supply: Provide reliable backup power supply in case of emergency to ensure the safety of fishermen and normal operation of equipment.

-Commercial energy storage: Provide efficient energy storage solutions for commercial buildings and industrial parks to optimize energy use.

3.Industrial equipment:
-Electric Forklift: Provide long-lasting power support for electric forklifts to improve work efficiency.
-Automation equipment: Provide stable power supply for automated production lines and robots to ensure the continuity of the production process.

4.Communication base station:
-Backup power supply: Provide reliable backup power supply for communication base stations to ensure the stable operation of communication networks.
-Remote site: Provide power support in communication base stations in remote areas to reduce maintenance costs.

5.Medical equipment:
-Backup power supply: Provide stable backup power supply for medical equipment to ensure the normal operation of medical equipment.
-Mobile medical equipment: Provide lightweight and efficient power support for mobile medical equipment.

6.Military and Defense:
-Mobile power supply: Provide reliable mobile power for military equipment and communication systems to improve combat capability.
-Emergency power supply: Provide stable power support in emergencies to guarantee the smooth operation of missions.

•Installation:

Ensure the battery is installed in a well-ventilated area and away from direct sunlight. Follow the provided installation guide for proper connection and mounting.

•Maintenance:

The LFP battery requires minimal maintenance. Regularly check the connections for tightness and inspect the battery for any signs of damage or wear.

•Charging:

-Charging: Use a compatible 29.2V charger and set appropriate charging parameters to ensure long-term battery performance.

•Handling:

Handle the battery with care to avoid dropping or damaging it.

•Ventilation:

Ensure adequate ventilation during charging and discharging to prevent the accumulation of gases.

•Temperature:

Avoid exposing the battery to extreme temperatures.

•Electrical Connections:

Ensure all electrical connections are secure and properly insulated.

•Disposal:

Dispose of the battery according to local regulations and recycling guidelines.
